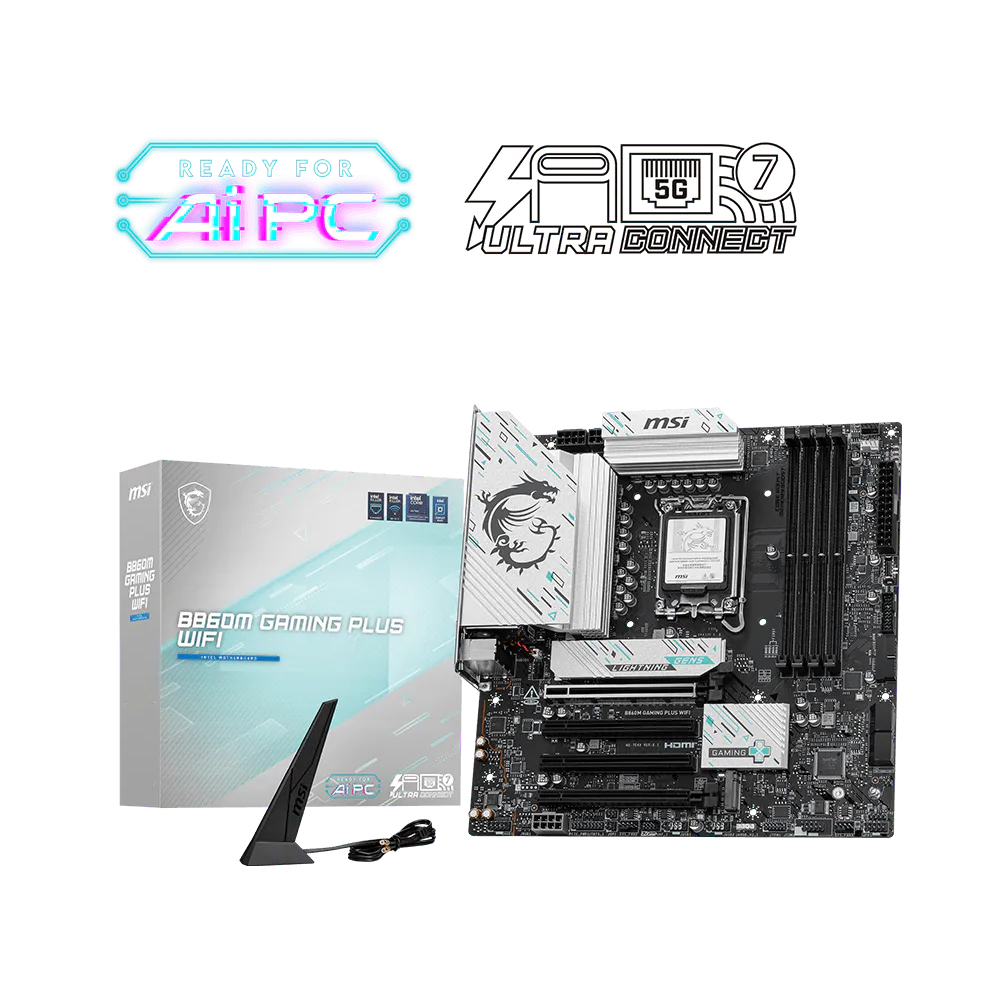

Mainboard MSI B860M Gaming Plus Wifi DDR5 (Intel B860/ Socket 1851/ M-ATX/ 4 khe RAM)

Sản phẩm

Bo mạch chủ

Tên Hãng

MSI

Model

B860M GAMING PLUS WIFI

CPU hỗ trợ

AMD

Chipset

INTEL B860

RAM hỗ trợ

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support 8800 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s

Max. overclocking frequency:

• 1DPC 1R Max speed up to 8800+ MT/s

• 1DPC 2R Max speed up to 7200+ MT/s

• 2DPC 1R Max speed up to 6400+ MT/s

• 2DPC 2R Max speed up to 5600+ MT/s

Khe cắm mở rộng

4x PCI-E x16 slot

PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)

Ổ cứng hỗ trợ

3x M.2

M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260/2242 devices

M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices

M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280 devices

4x SATA 6G

Cổng kết nối (Internal)

1x Thunderbolt5 card connector(JTBT5, support RTD3)

1x Power Connector(ATX_PWR)

2x Power Connector(CPU_PWR)

1x Power Connector(PCIE_PWR 8pin)

1x CPU Fan

1x Combo Fan (Pump_Sys Fan)

3x System Fan

1x EZ Conn-header (JAF_1)

2x Front Panel (JFP)

1x Chassis Intrusion (JCI)

1x Front Audio (JAUD)

1x Com Port (JCOM)

1x Tuning Controller connector(JDASH)

2x Addressable V2 RGB LED connector (JARGB_V2)

1x RGB LED connector(JRGB)

1x TPM pin header(Support TPM 2.0)

4x USB 2.0 ports

4x USB 5Gbps Type A ports

1x USB 10Gbps Type C ports

Cổng kết nối (Back Panel)

1. Display Port

2. Clear CMOS Button

3. 5G LAN

4. Wi-Fi / Bluetooth

5. Audio Connectors

6. HDMI™

7. Thunderbolt™ 4 40Gbps (Type-C)

8. USB 2.0

9. USB 5Gbps (Type-A)

10. USB 5Gbps (Type-C)

11. USB 10Gbps (Type-A)

LAN / Wireless

Intel^® Killer™ BE1750x Wi-Fi 7

The Wireless module is pre-installed in the M.2 (Key-E) slot

Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps

Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

Supports Bluetooth^® 5.4**, MLO, 4KQAM

Kích cỡ

mATX

243.84mmx243.84mm
