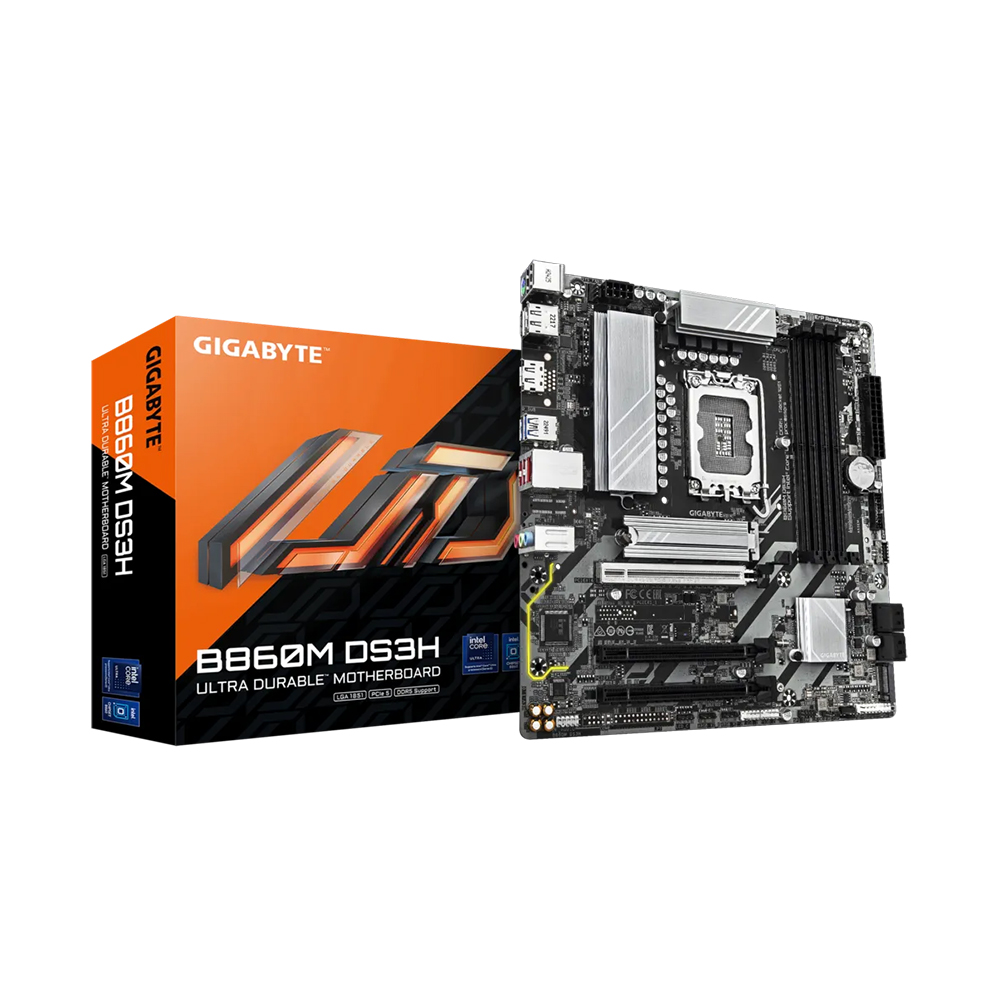

Mainboard Gigabyte B860M DS3H DDR5 (Intel B860/ Socket 1851/ M-ATX/ 4 khe RAM)

Sản phẩm

Bo mạch chủ

Tên Hãng

Mainboard Gigabyte

CPU hỗ trợ

LGA1851 socket: Support for Intel® Core™ Ultra Processors

Chipset

Intel ® B860

RAM hỗ trợ

Support for DDR5 9066(O.C)/8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /6400/5600 MT/s memory modules

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Dual channel memory architecture

Khe cắm mở rộng

CPU:

– 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:
– 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x1 (PCIEX1_2/3)

Ổ cứng hỗ trợ

CPU:

– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

– 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)

– 4 x SATA 6Gb/s connectors

RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

ETHERNET

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

USB

Chipset:

– 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

– 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

– 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

– 3 x USB 2.0/1.1 ports on the back panel

Chipset+USB 2.0 Hub:

– 4 x USB 2.0/1.1 ports available through the internal USB headers

Cổng kết nối (Internal)

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x CPU fan/water cooling pump header

1 x system fan header

1 x system fan/water cooling pump header

3 x addressable RGB Gen2 LED strip headers

1 x RGB LED strip header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x USB Type-C® header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

Cổng kết nối (Back Panel)

1 x PS/2 keyboard/mouse port

1 x HDMI port (Note)

2 x DisplayPorts (Note)

1 x USB 3.2 Gen 2 Type-A port (red)

2 x USB 3.2 Gen 1 ports

3 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

Kích cỡ
